Design & specifications

If you want to know how BeagleV Ahead board is designed and what are it’s high-level specifications then this chapter is for you. We are going to discuss each hardware design element in detail and provide high-level device specifications in a short and crisp form as well.

Block diagram

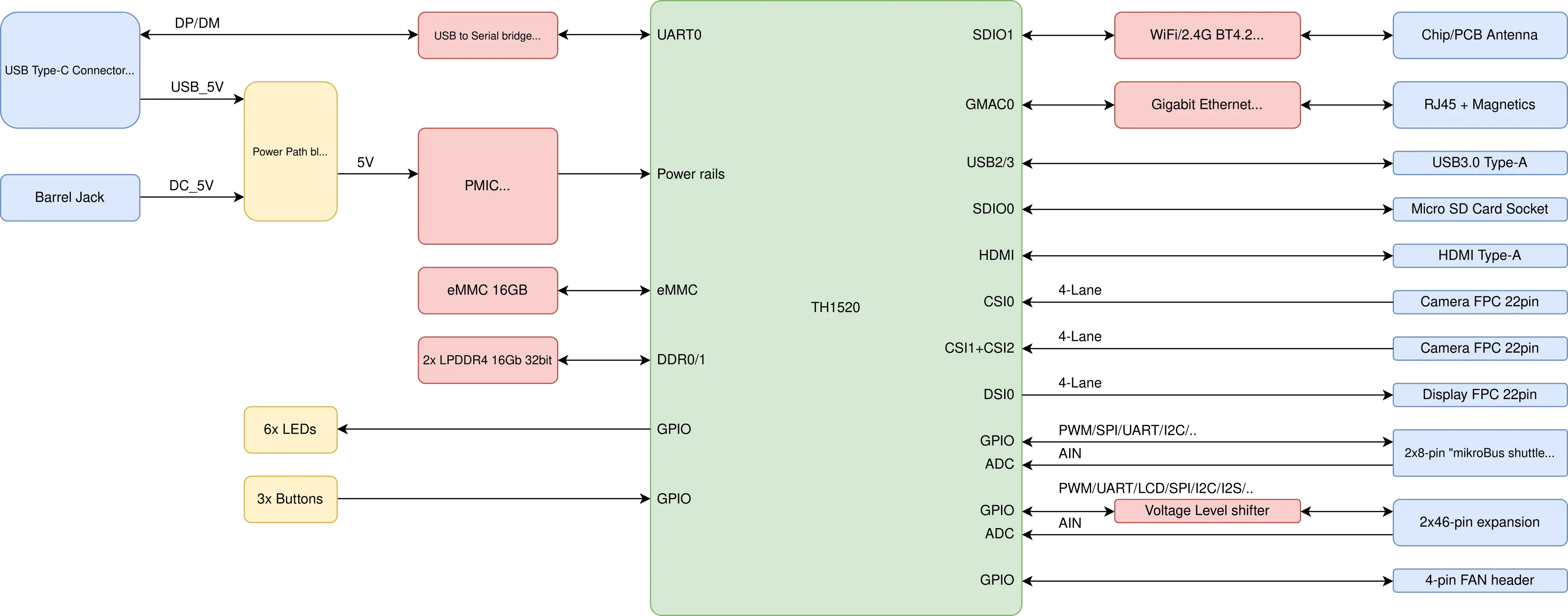

Fig. 211 System block diagram

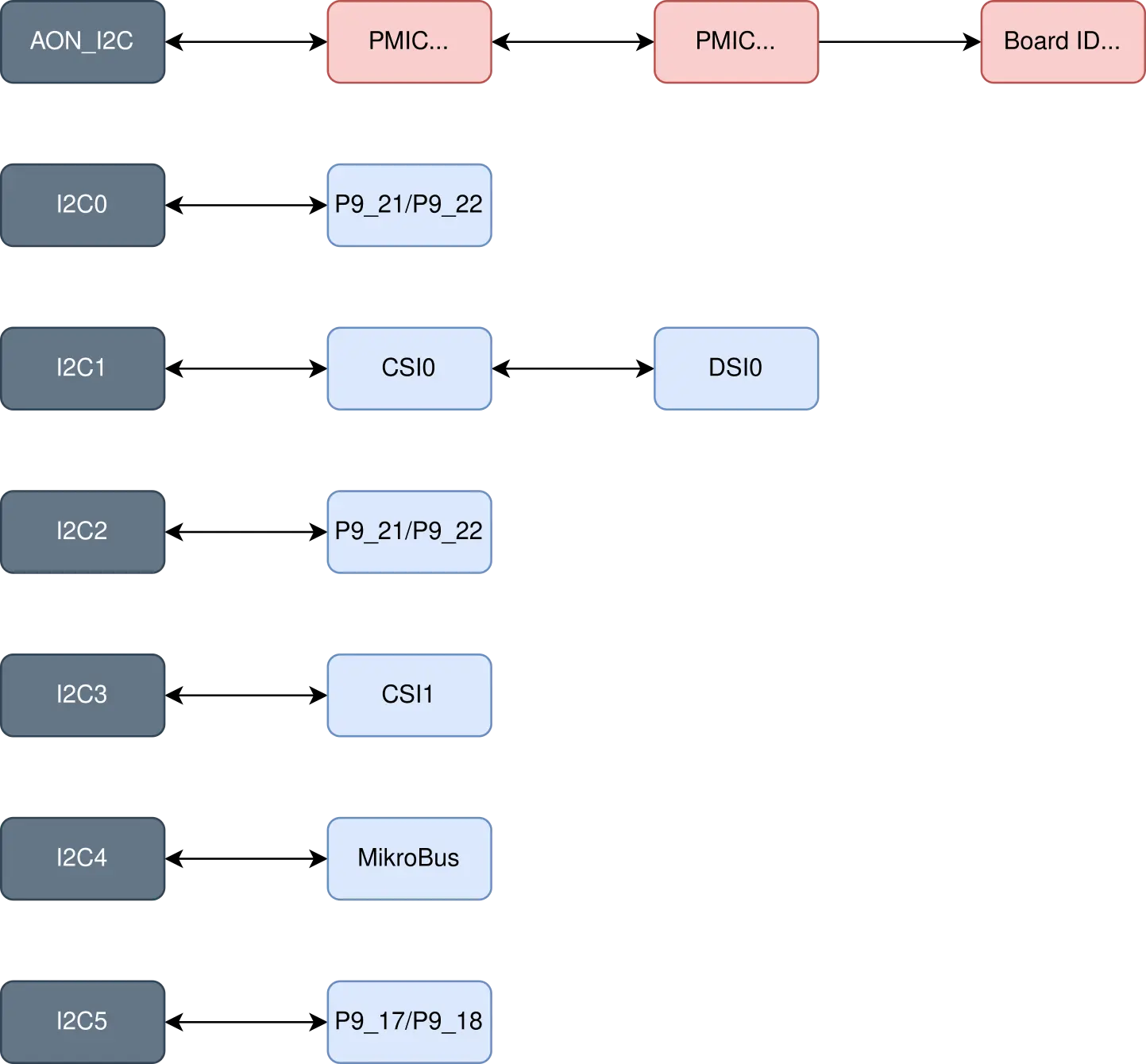

Fig. 212 I2C-Usage diagram

System on Chip (SoC)

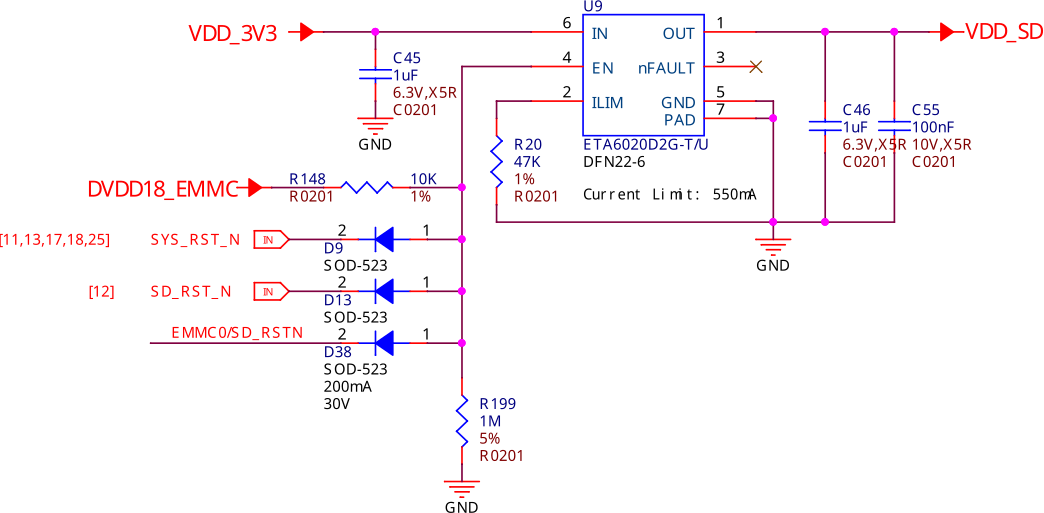

Fig. 213 SoC eMMC power switch

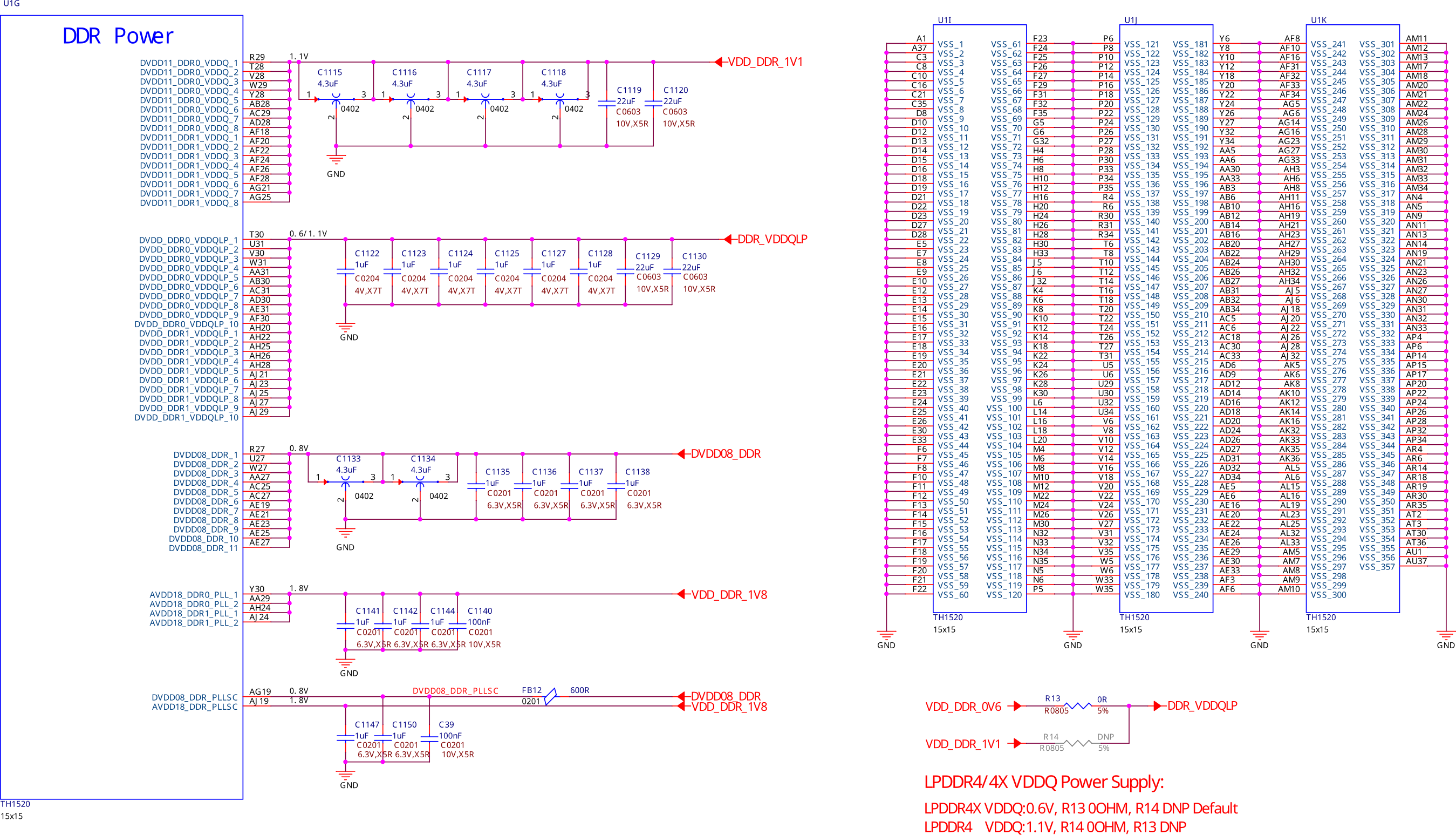

Fig. 214 SoC DDR Power

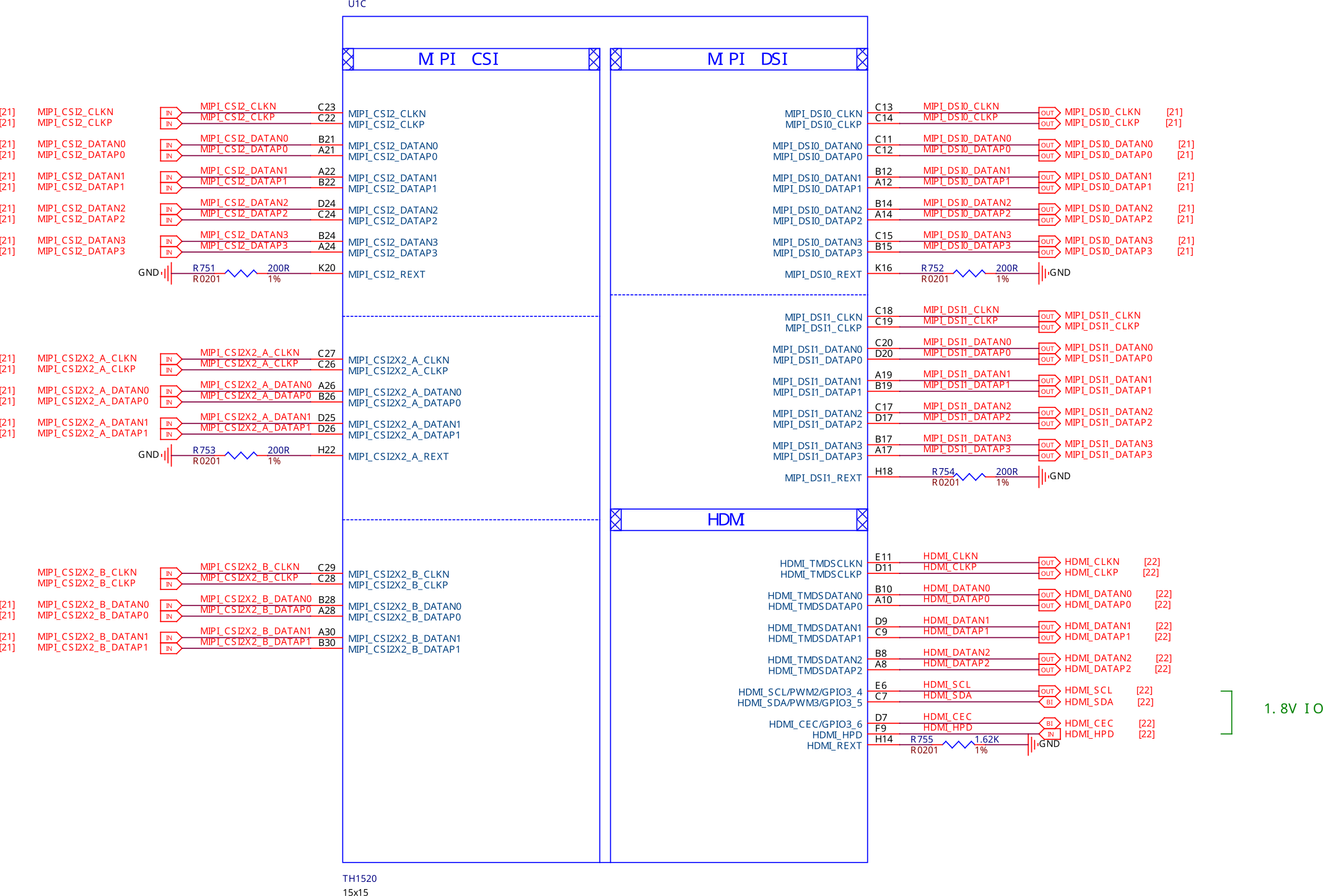

Fig. 215 SoC MIPI CSI DSI HDMI

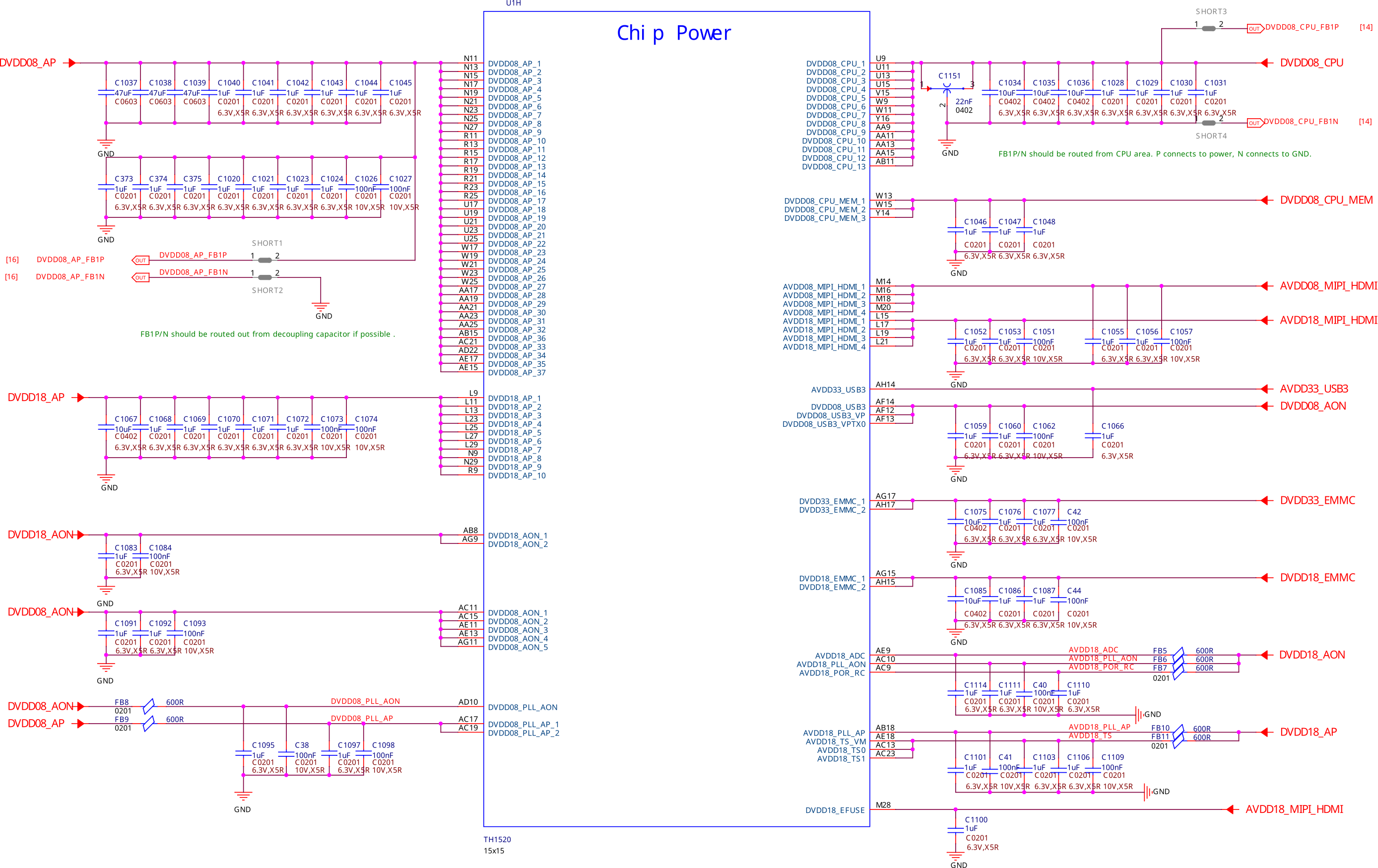

Fig. 216 SoC power

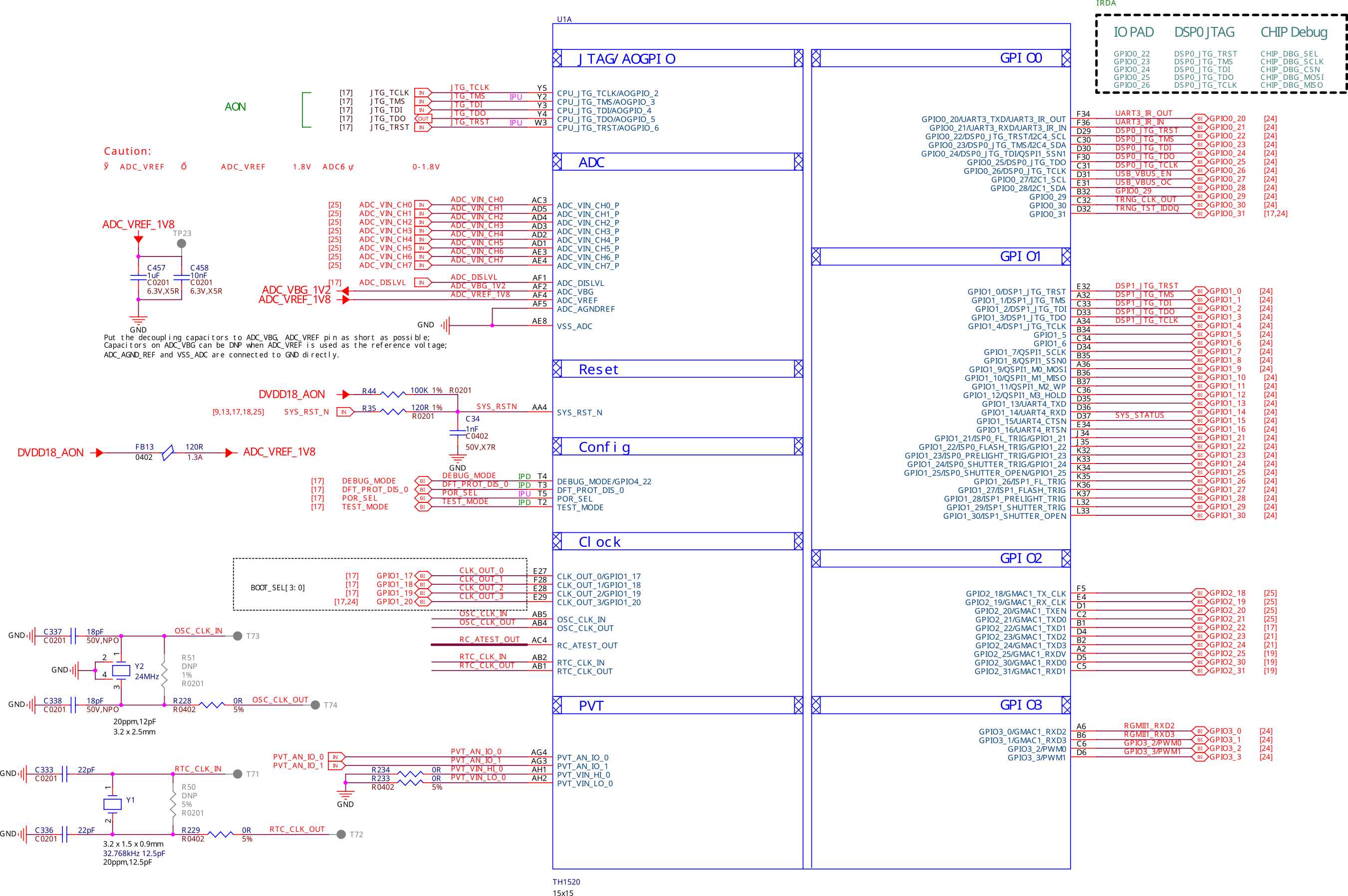

Fig. 217 SoC sys, ADC, and Clock

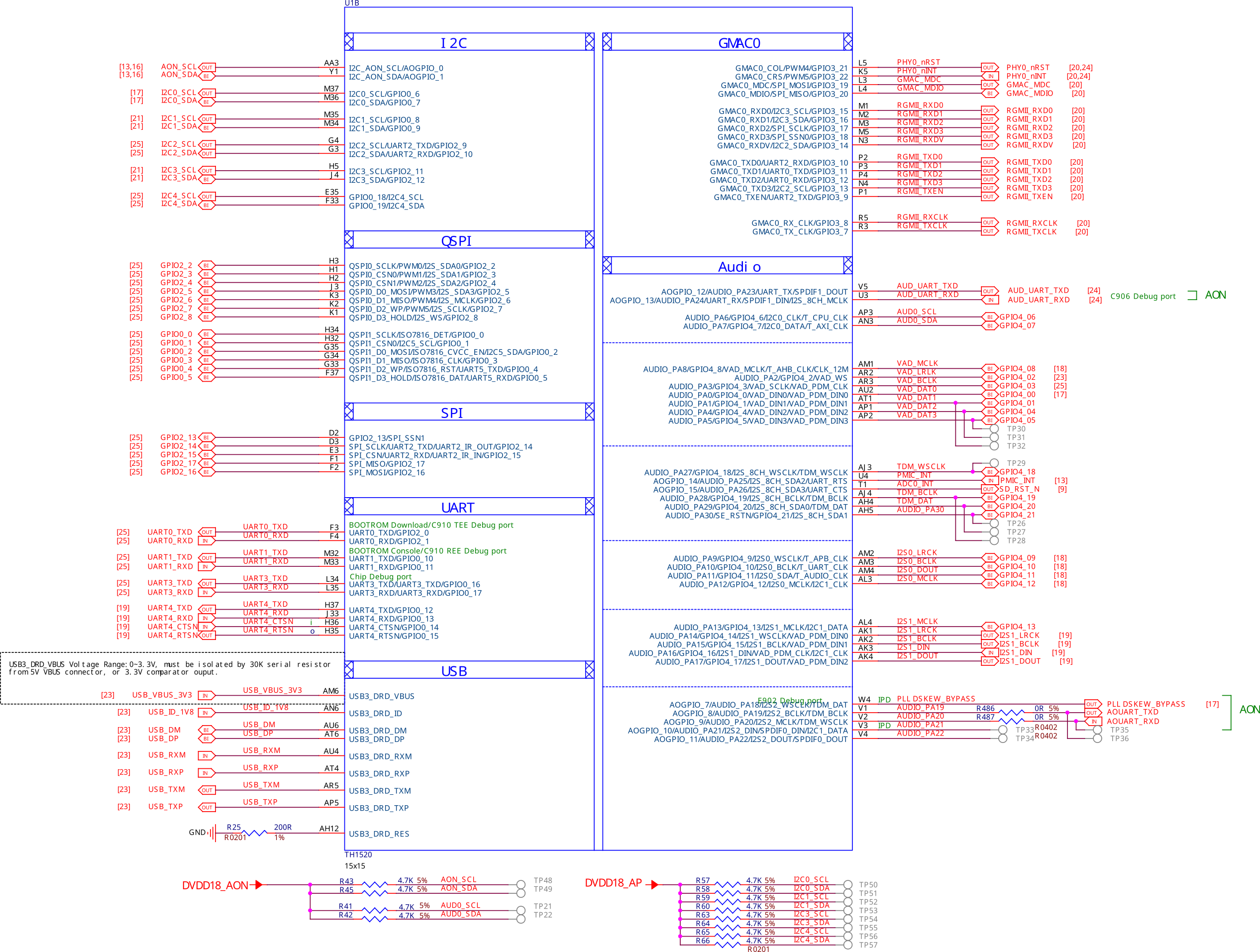

Fig. 218 SoC USB GMAC Audio

Power management

Barrel jack

Fig. 219 Barrel jack power input

0.8V DCDC buck

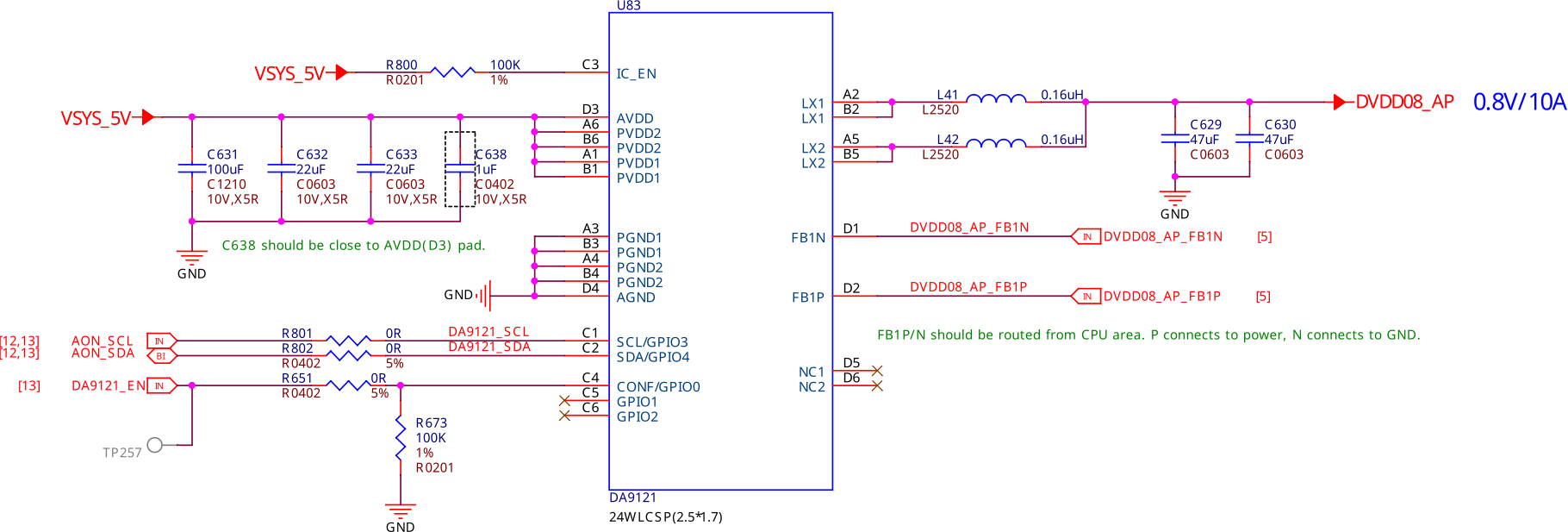

Fig. 220 0.8V DCDC buck converter

3.3V DCDC buck

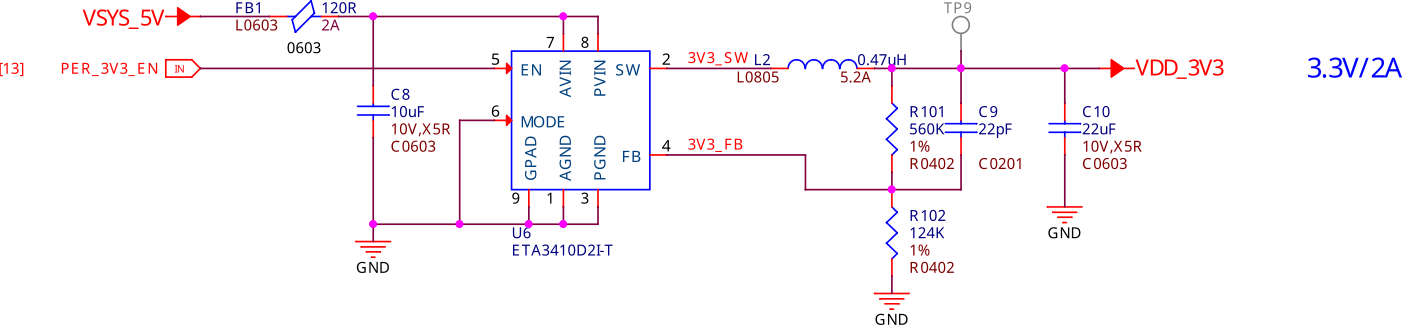

Fig. 221 3.3V DCDC buck converter

1.8V LDO

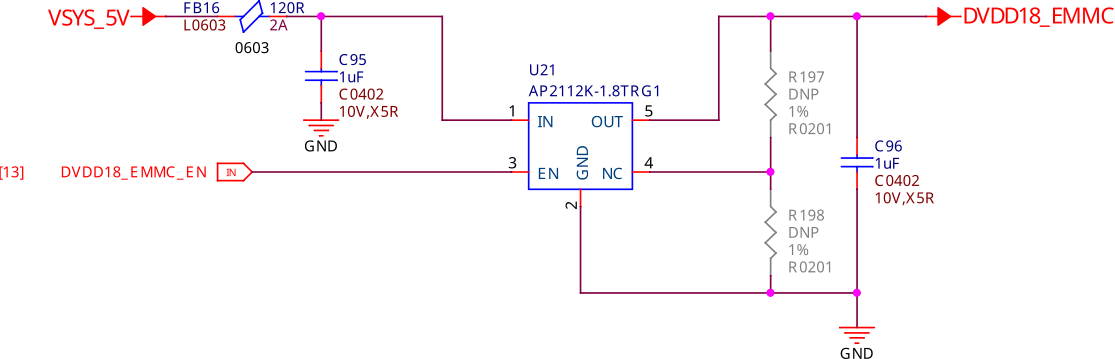

Fig. 222 1.8V LDO regulator

PMIC

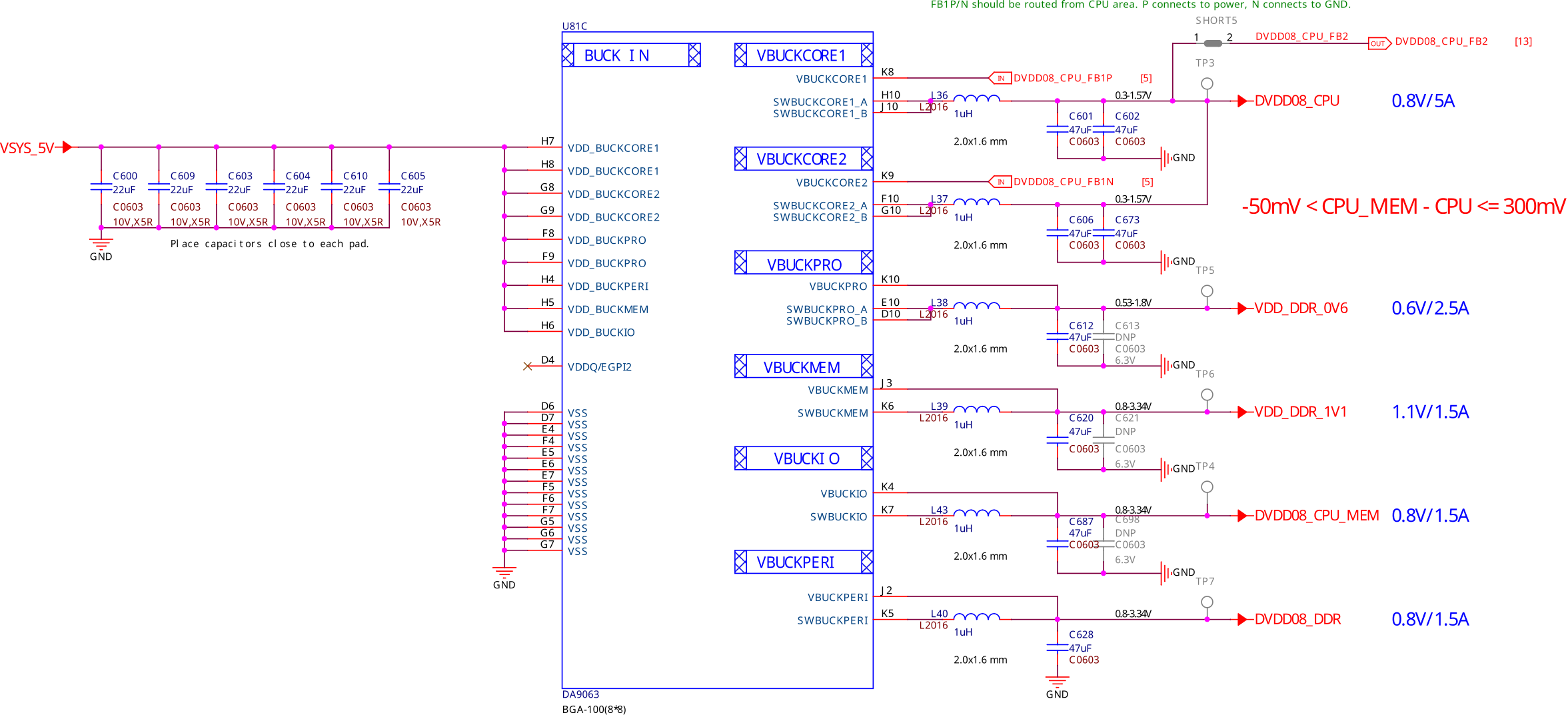

Fig. 223 PMIC Buck

Fig. 224 PMIC Control

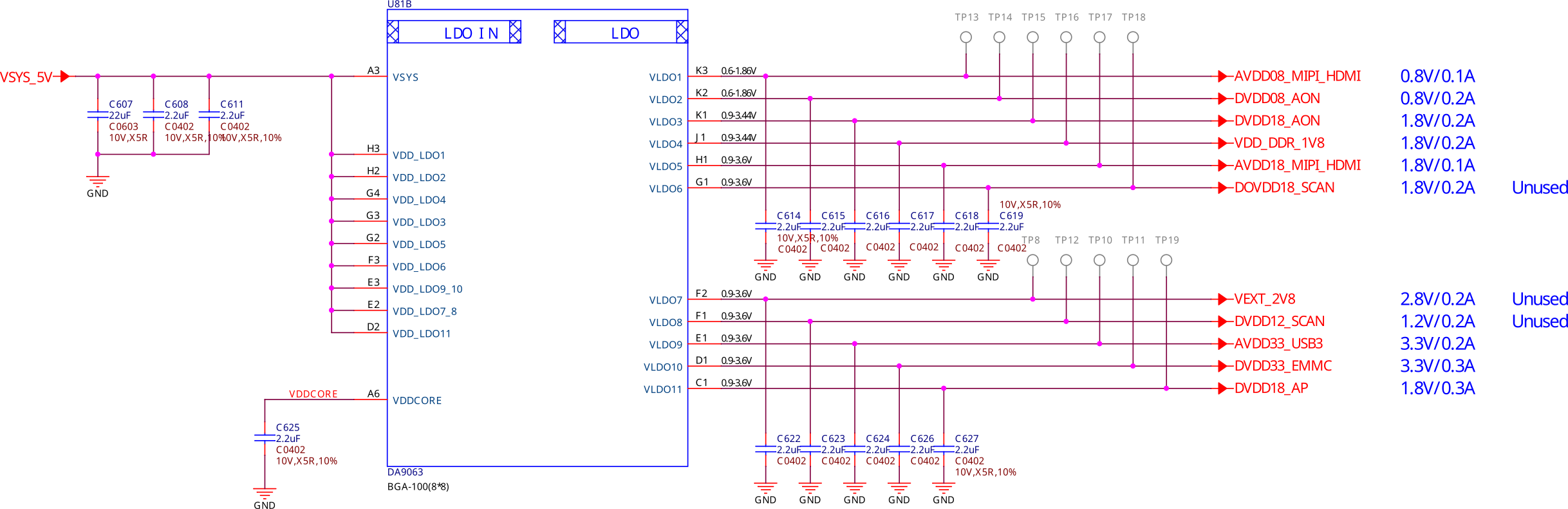

Fig. 225 PMIC LDO

General Connectivity and Expansion

microUSB 3.0 port

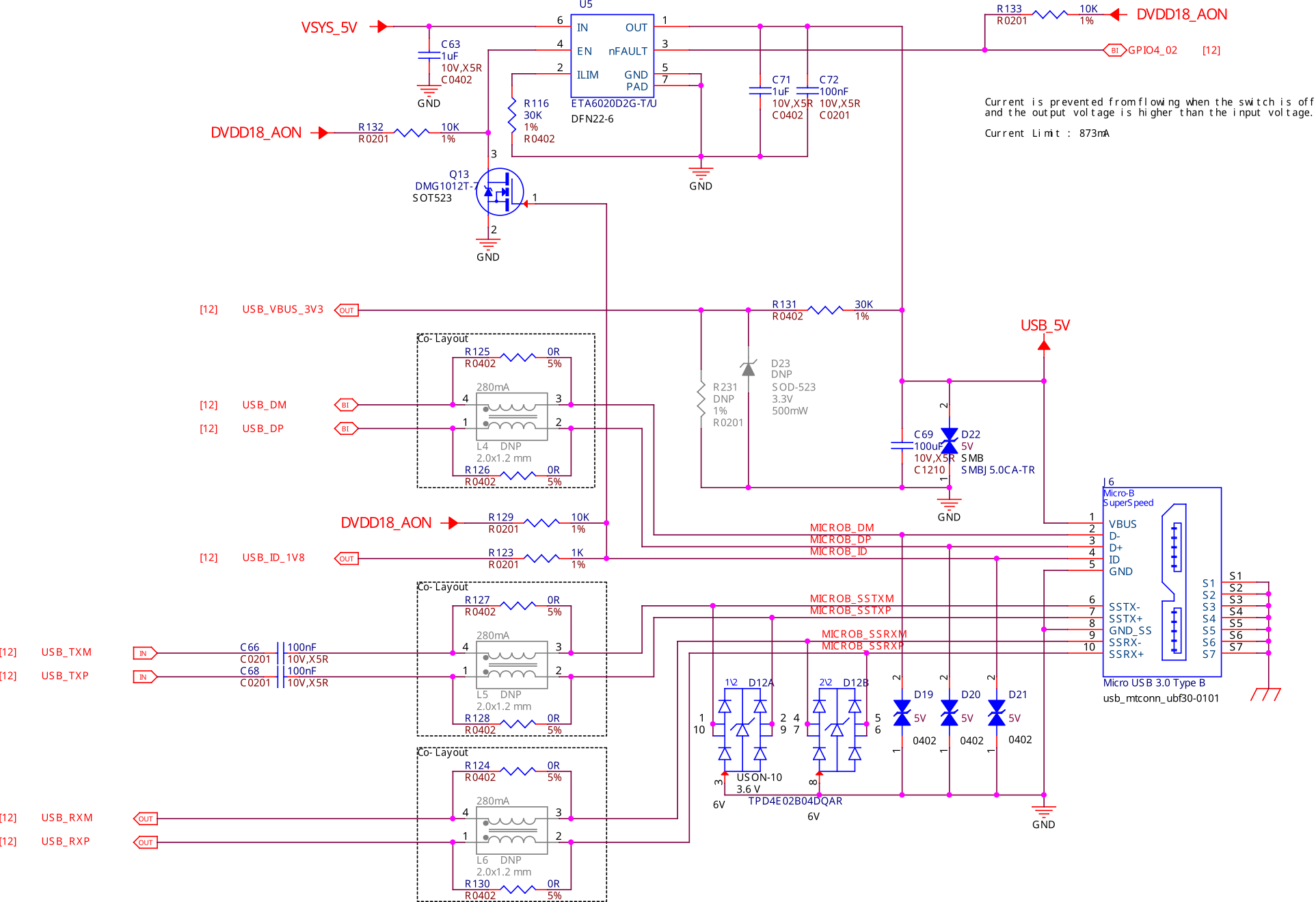

Fig. 226 microUSB 3.0 port

P8 & P9 cape header pins

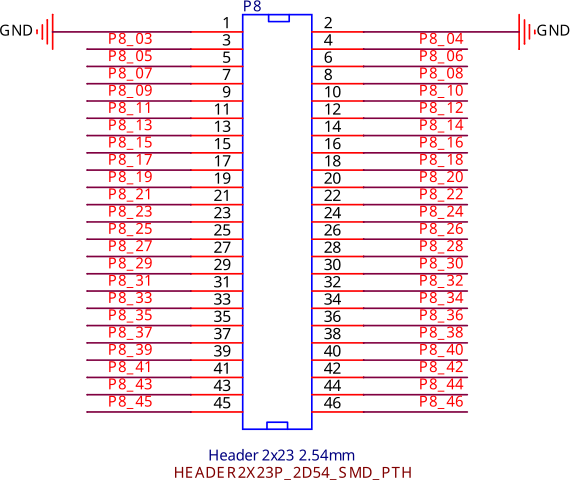

Fig. 227 P8 cape header

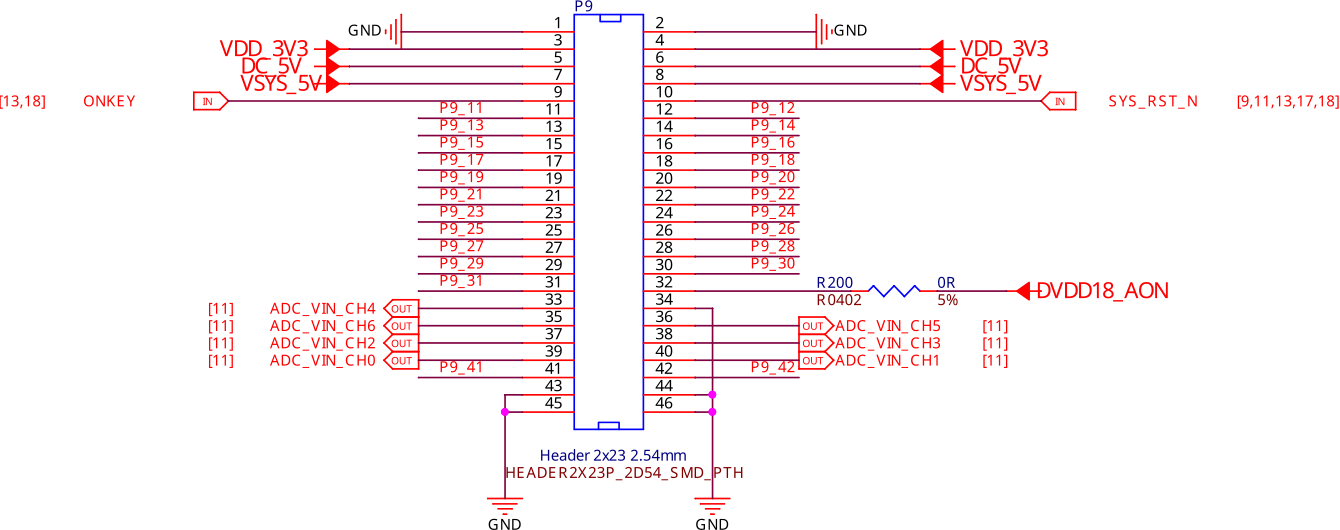

Fig. 228 P9 cape header

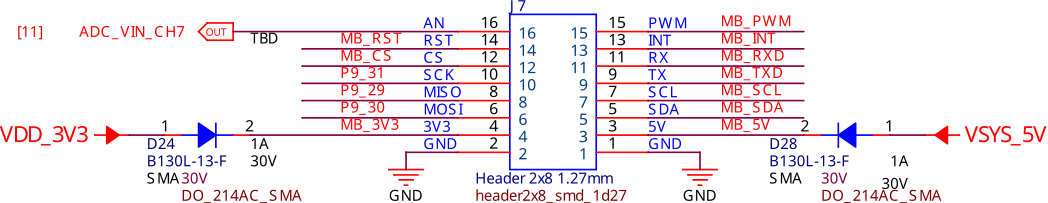

mikroBUS shuttle connector

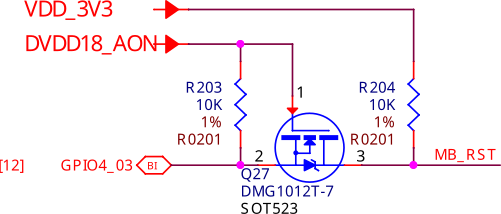

P8, P9, and mikroBUS helper circuitry

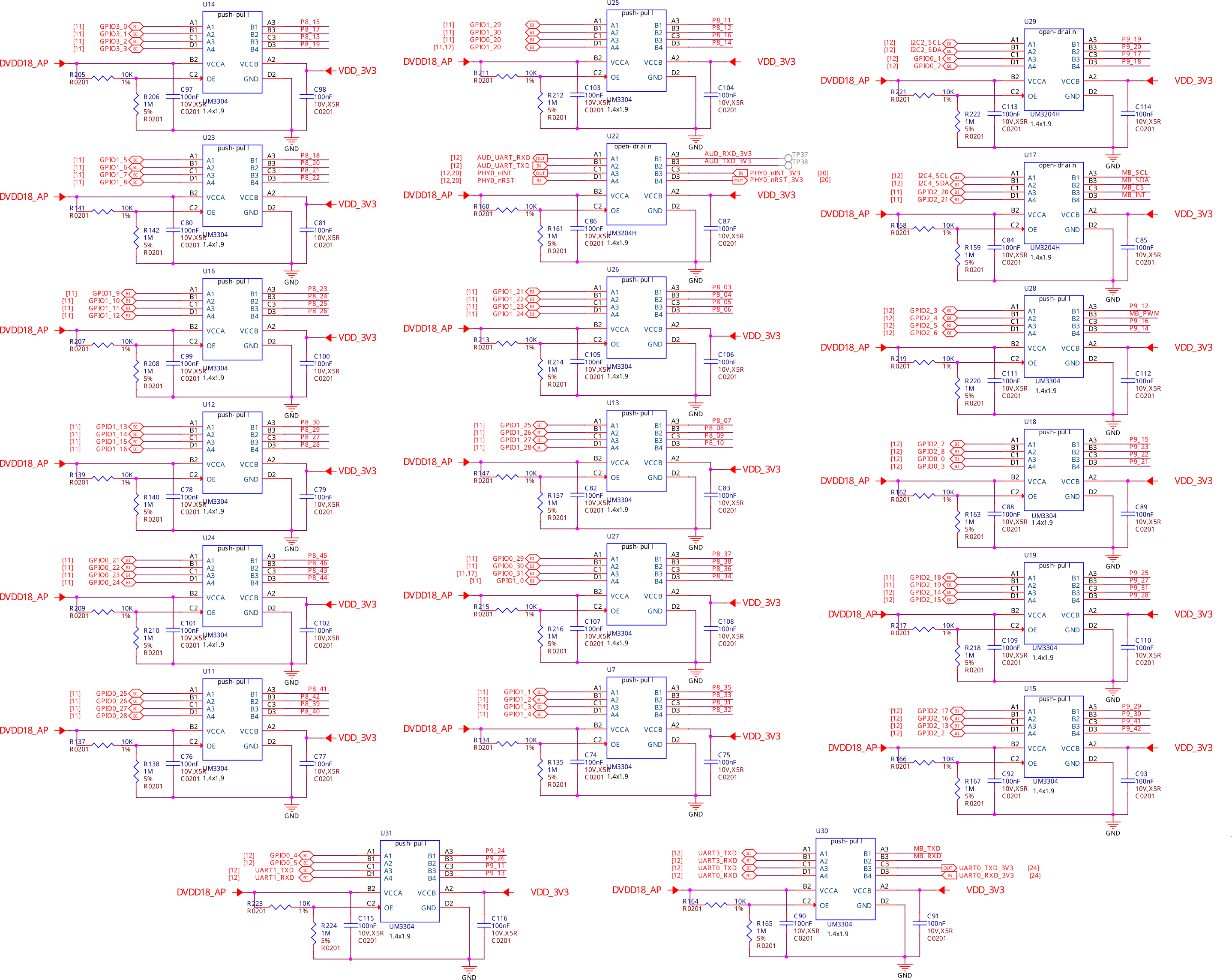

Fig. 229 P8, P9, and mikroBUS level shifters

Buttons and LEDs

Boot select buttons

Fig. 230 Boot select buttons

User LEDs and Power LED

Fig. 231 User LEDs and power LED

Power and reset button

Fig. 232 Power and reset button

Wired and wireless connectivity

Ethernet

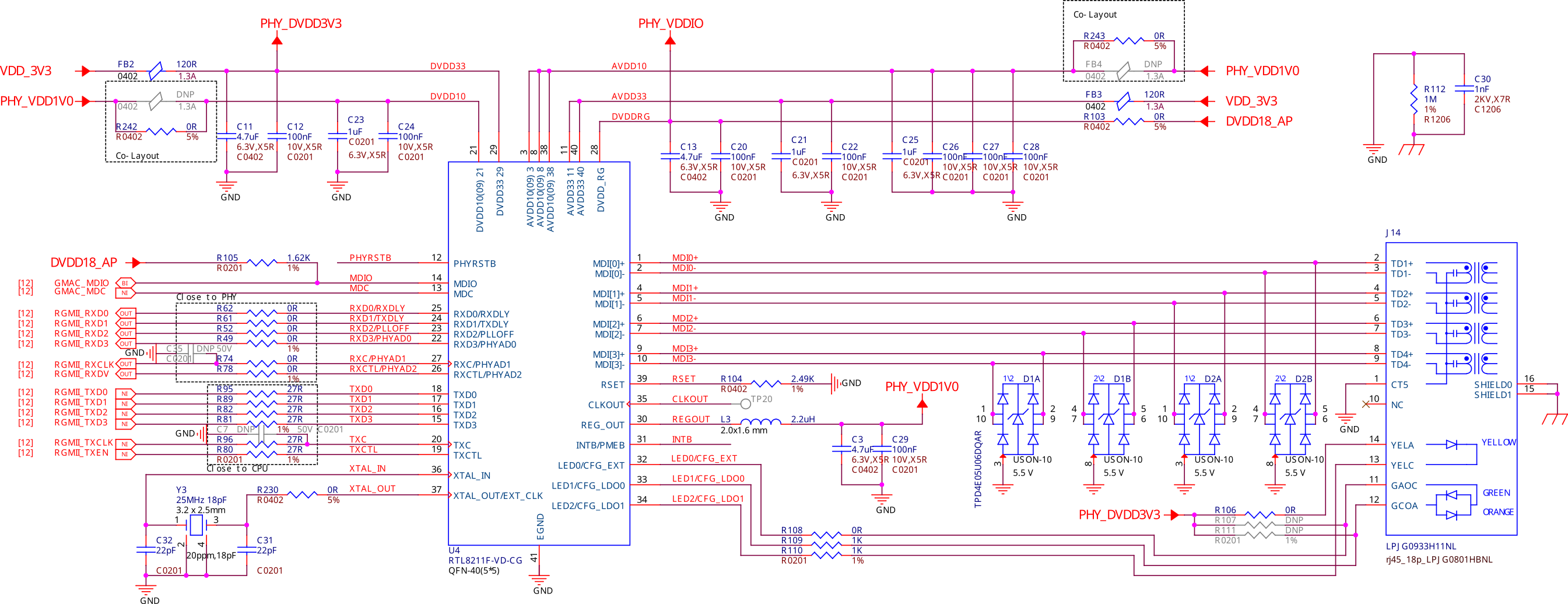

Fig. 233 Ethernet

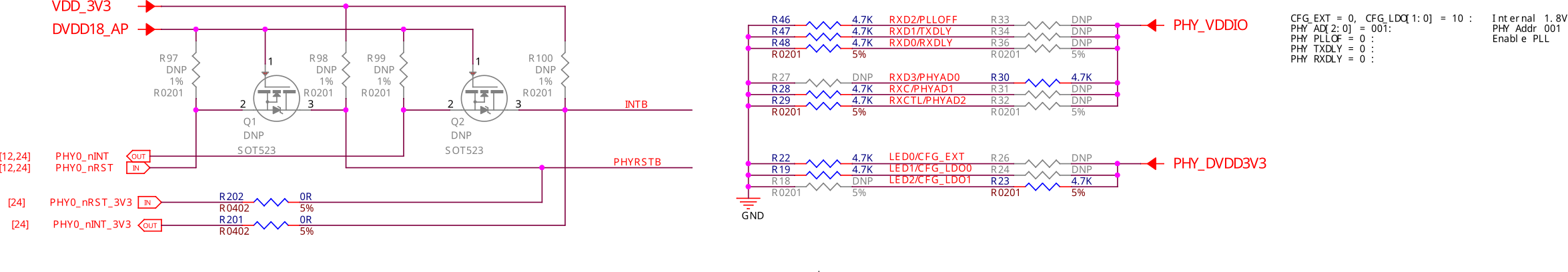

Fig. 234 Ethernet LevelShifter and Strapping

WiFi & Bluetooth

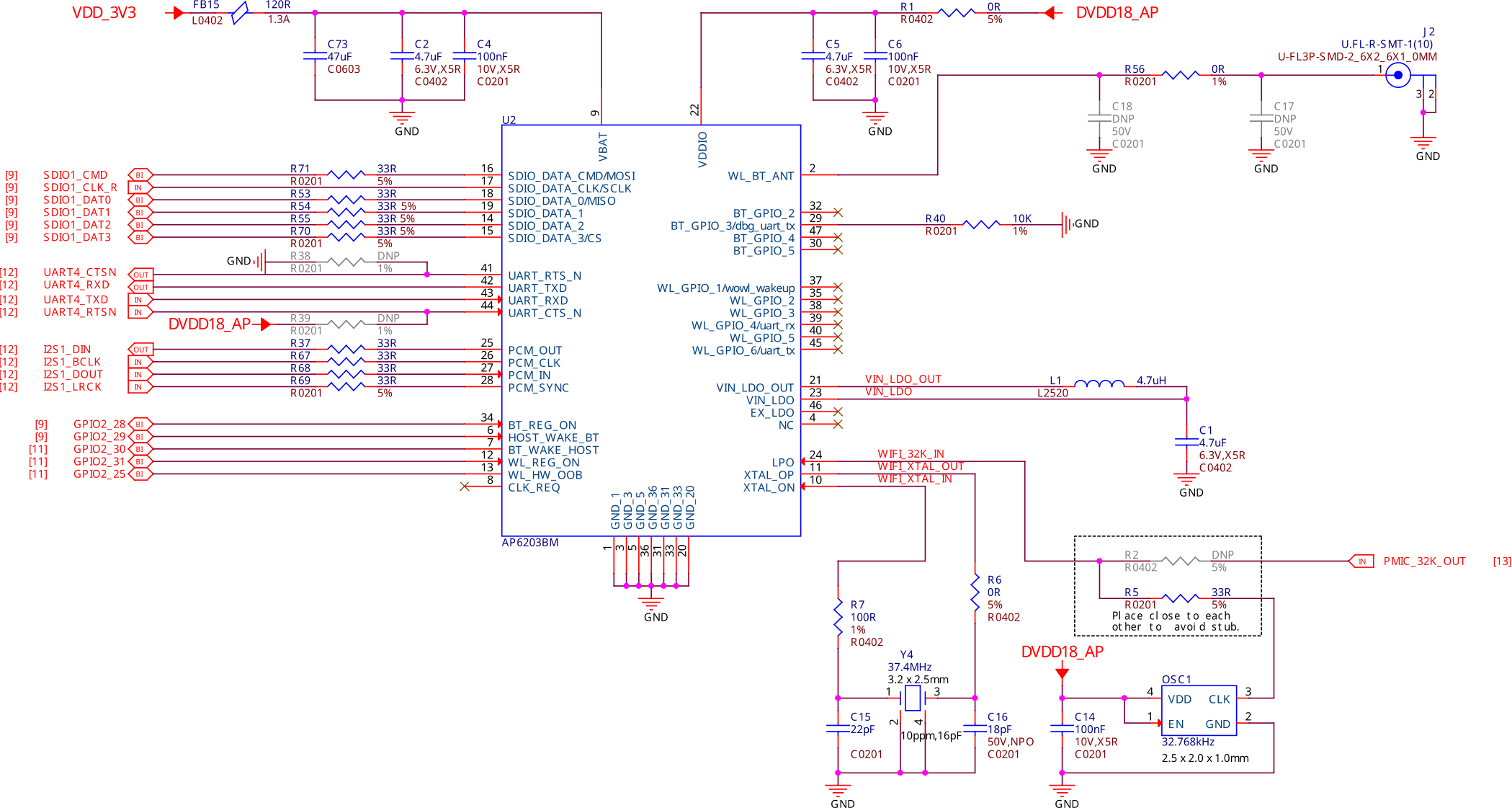

Fig. 235 WiFi and Bluetooth

Memory, Media and Data storage

DDR memory

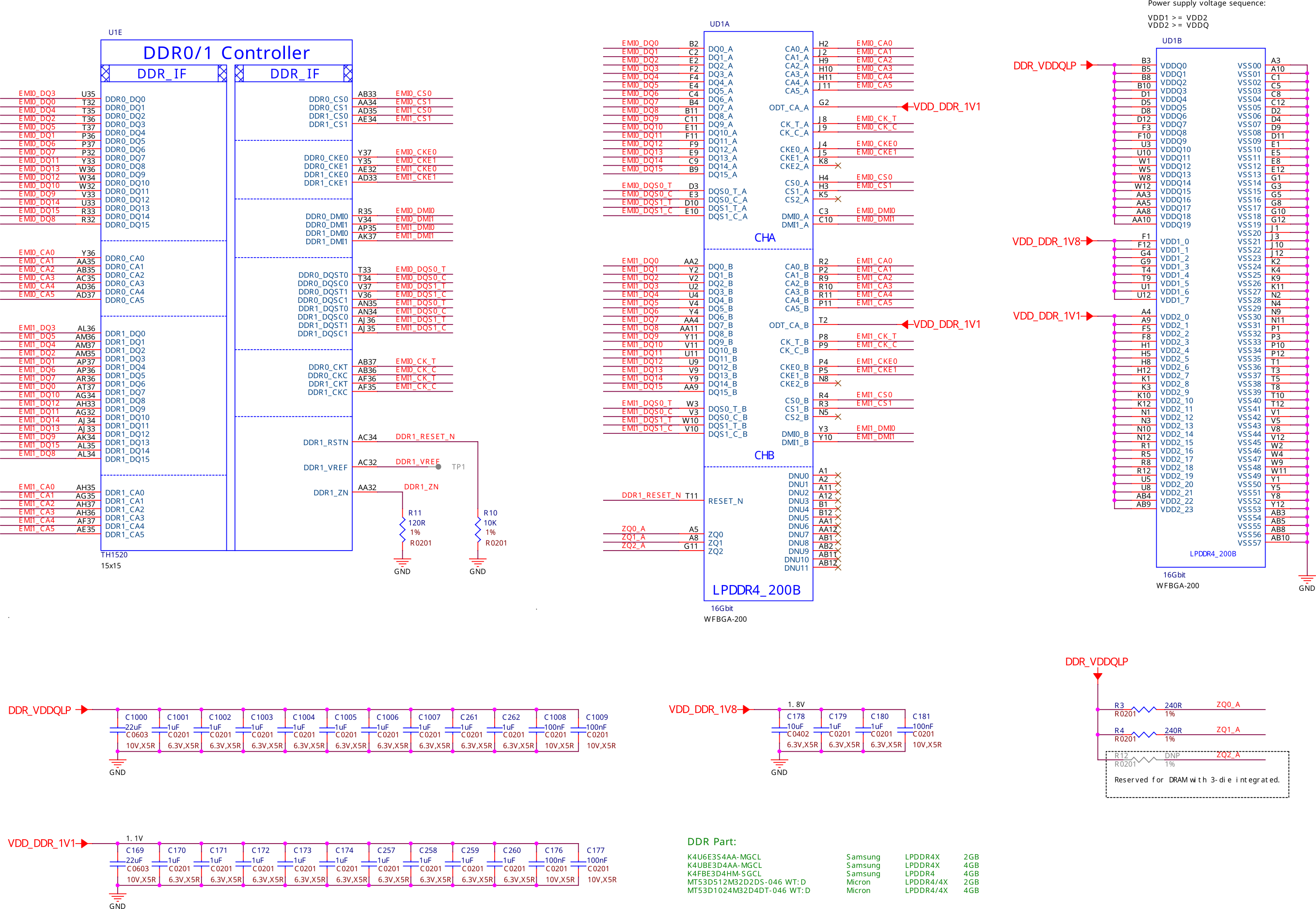

Fig. 236 2GB DDR4 Memory chip1

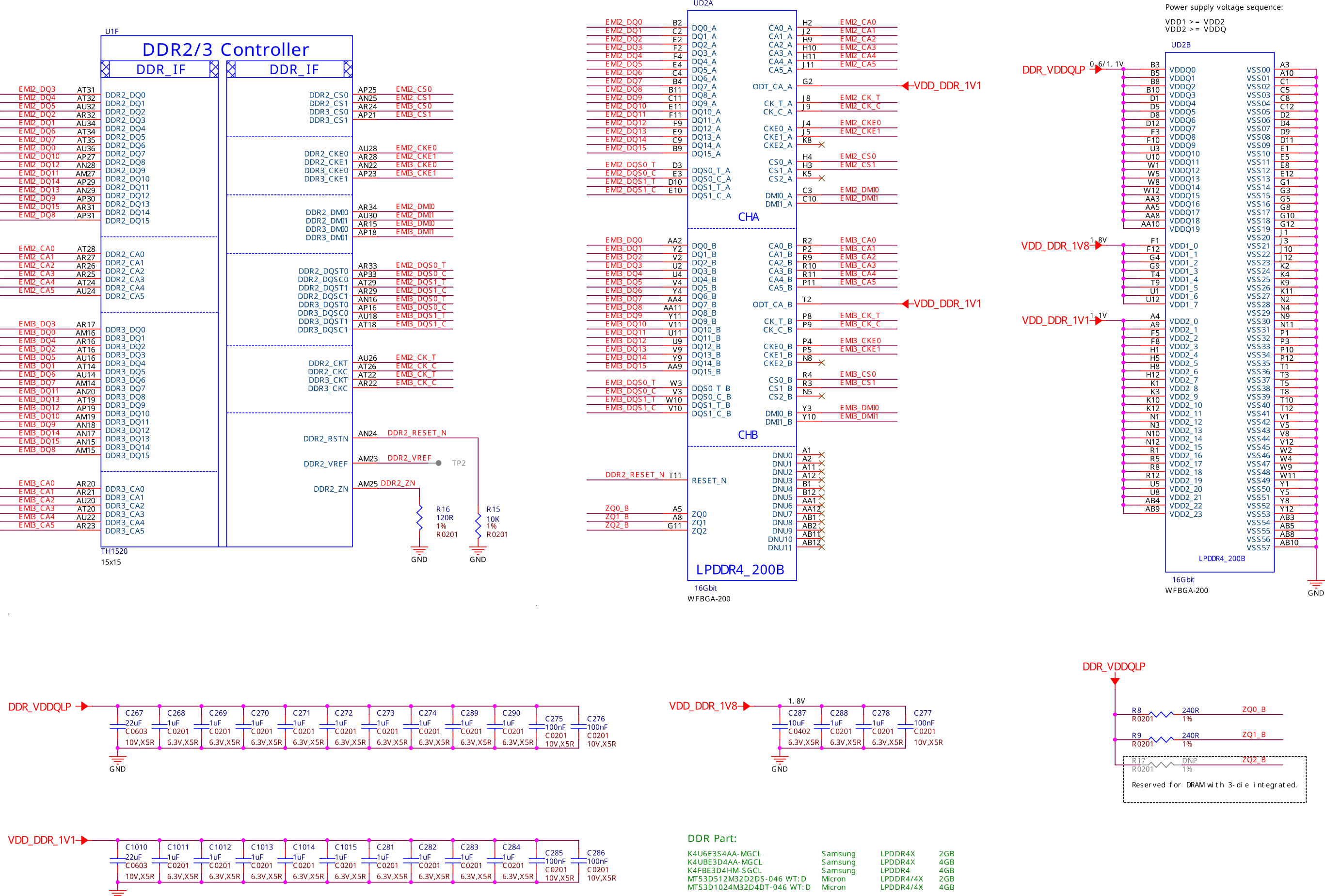

Fig. 237 2GB DDR4 Memory chip2

eMMC

Fig. 238 16GB eMMC

microSD

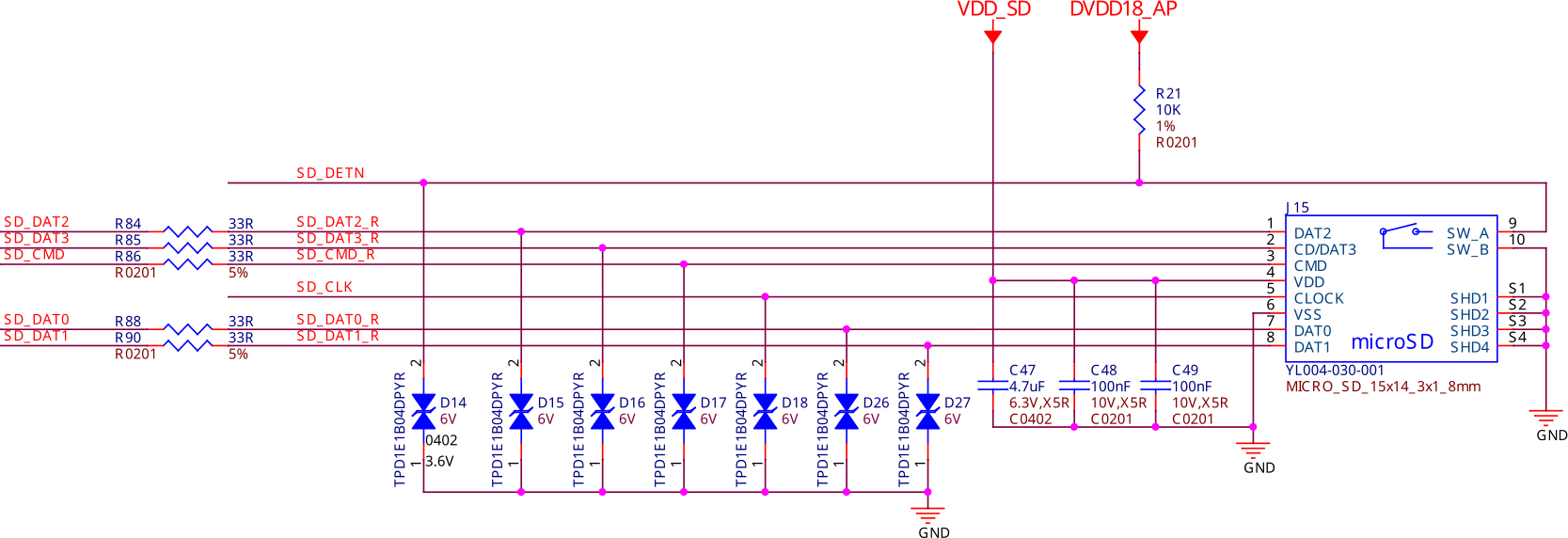

Fig. 239 microSD card connector

EEPROM

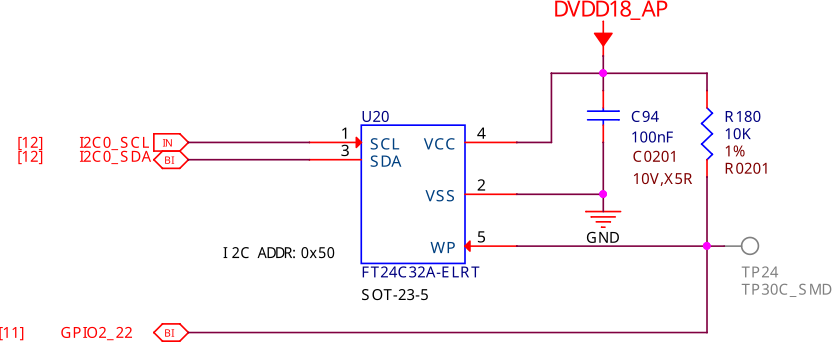

Fig. 240 16GB EEPROM

Multimedia I/O

CSI0

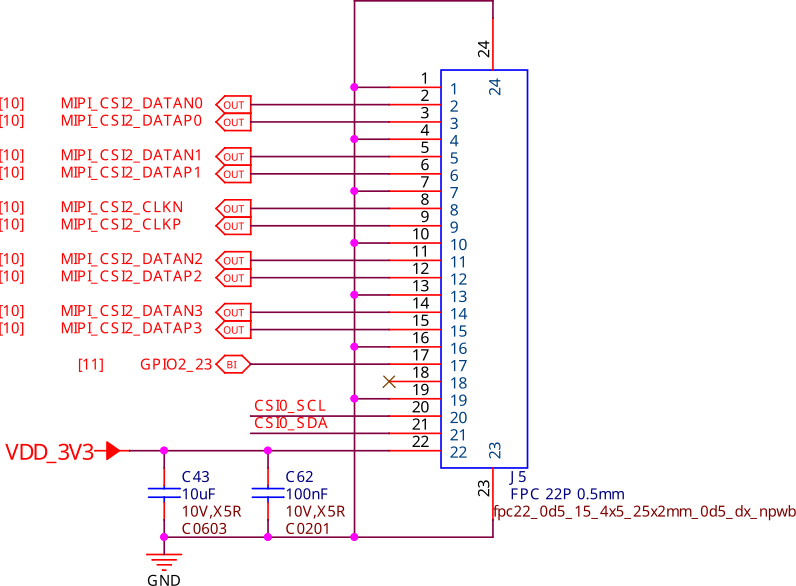

Fig. 241 CSI0 camera interface

CSI1

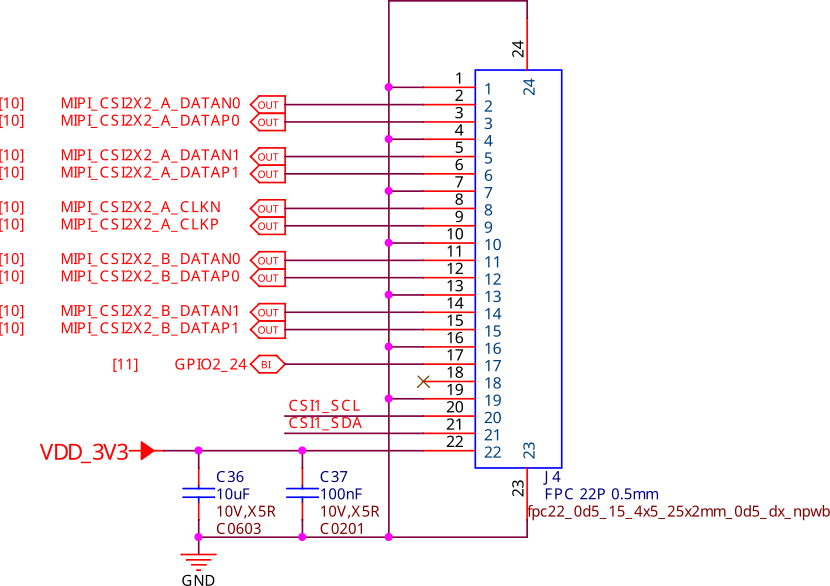

Fig. 242 CSI1 camera interface

DSI

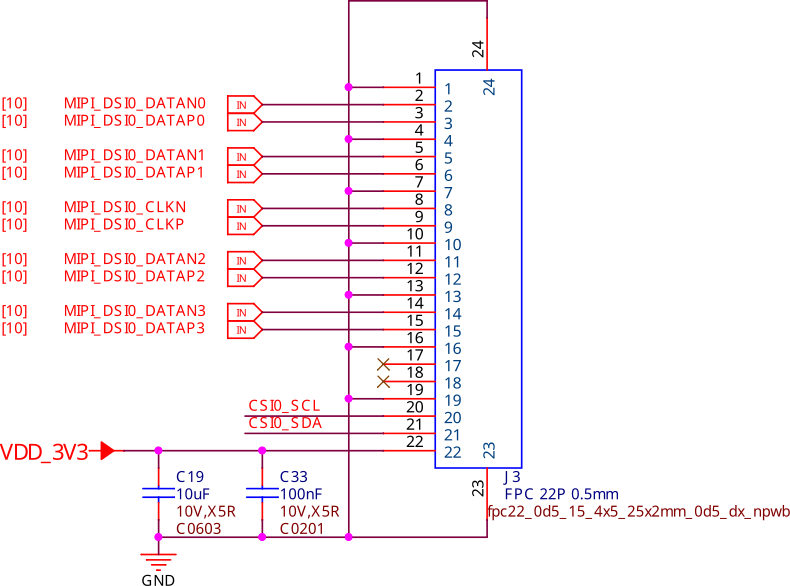

Fig. 243 DSI display interface

CSI & DSI level shifter

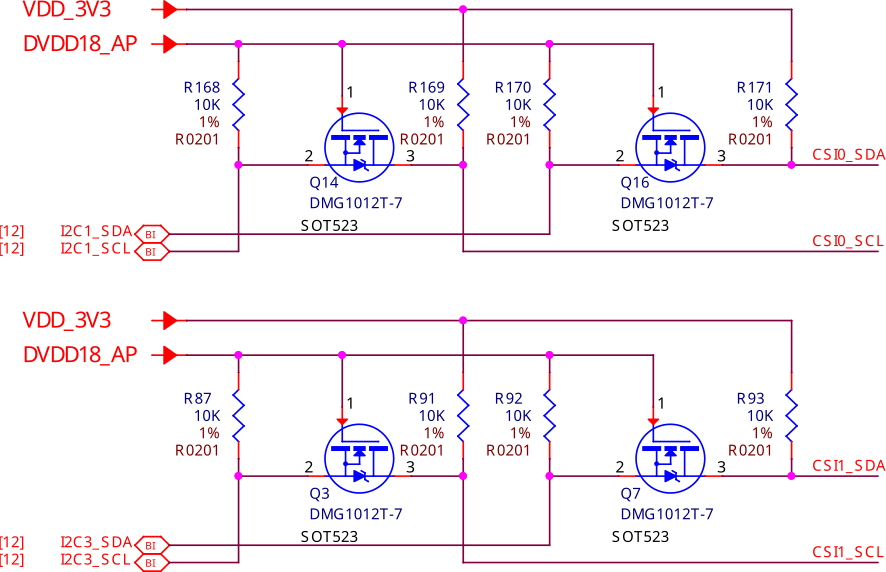

Fig. 244 CSI & DSI level shifter

HDMI

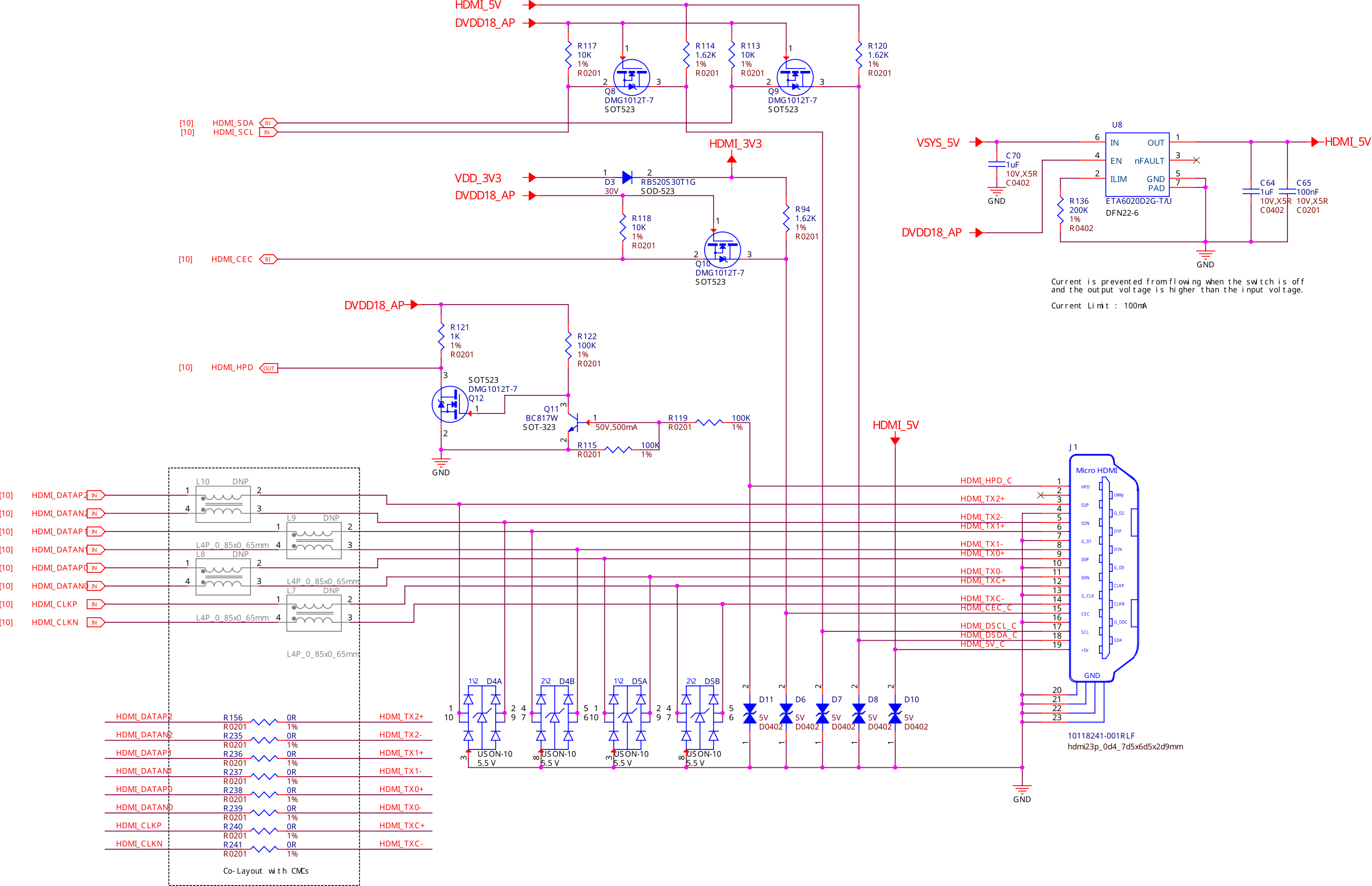

Fig. 245 HDMI display interface

Debug

UART debug port

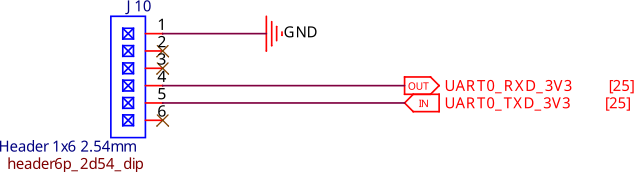

Fig. 246 UART Debug port

JTAG debug port

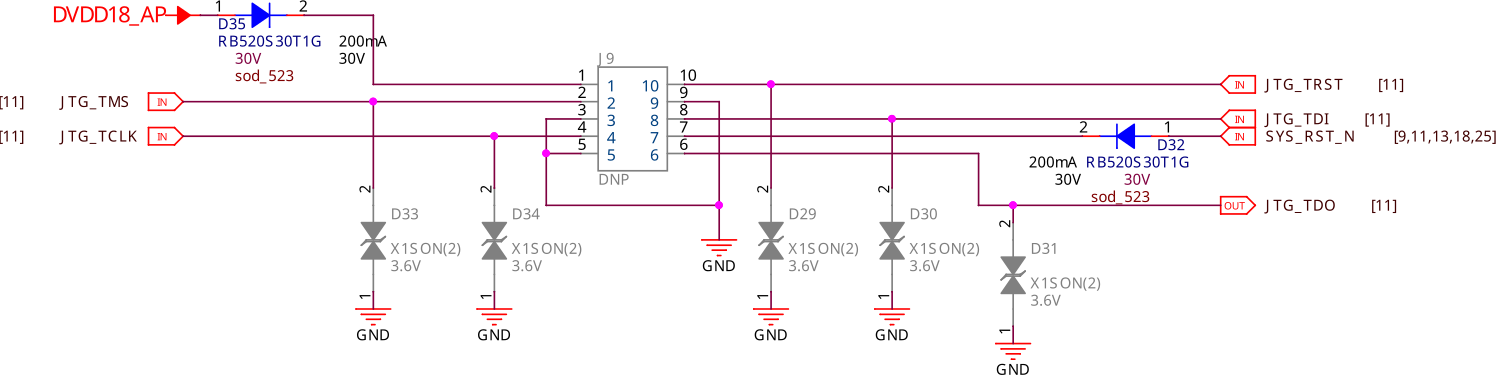

Fig. 247 JTAG debug port

Mechanical Specifications

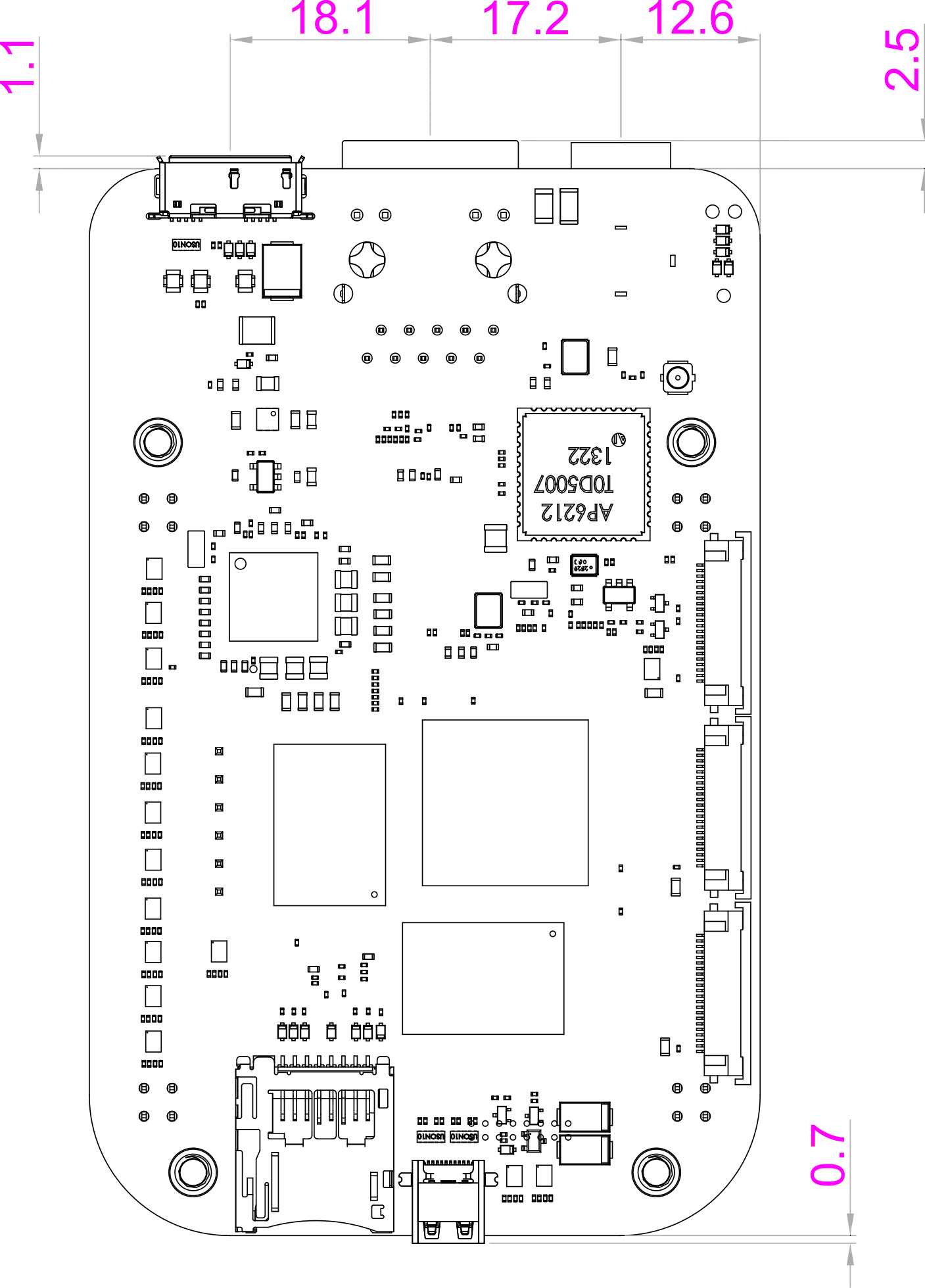

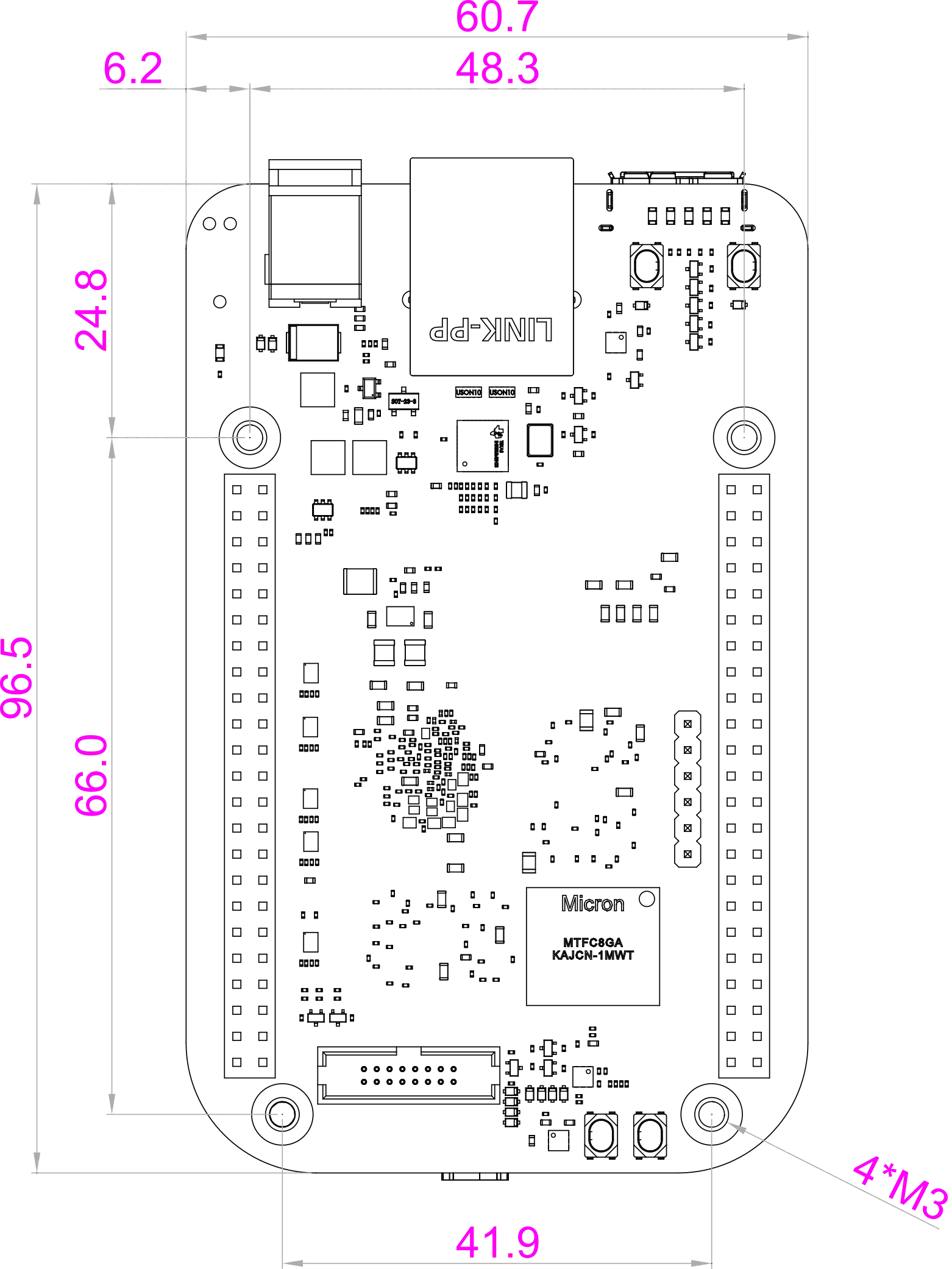

Top	Bottom

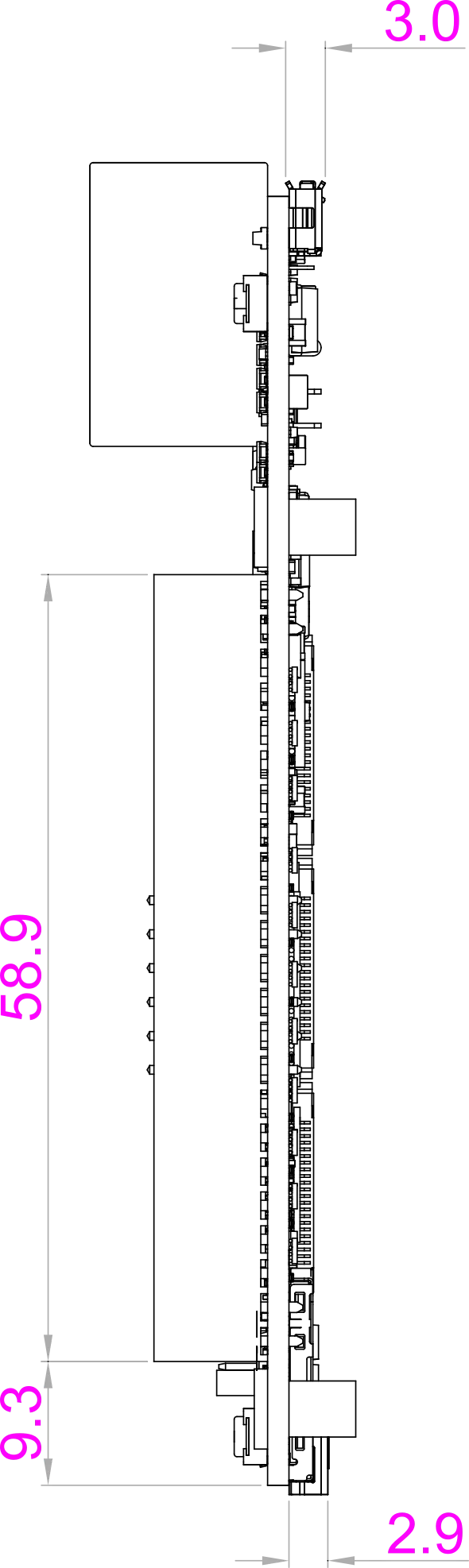

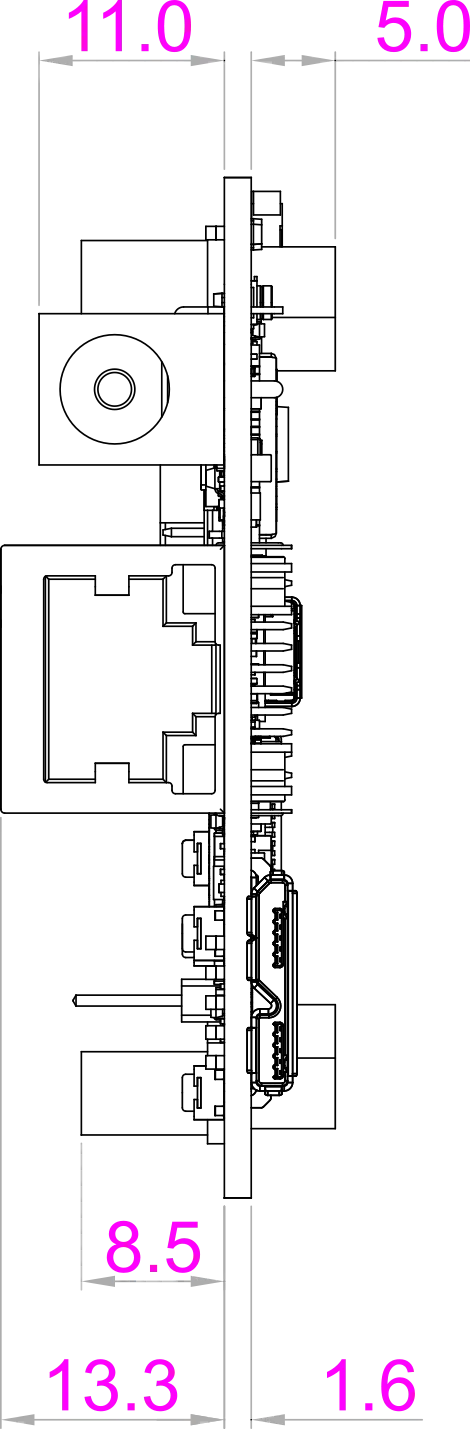

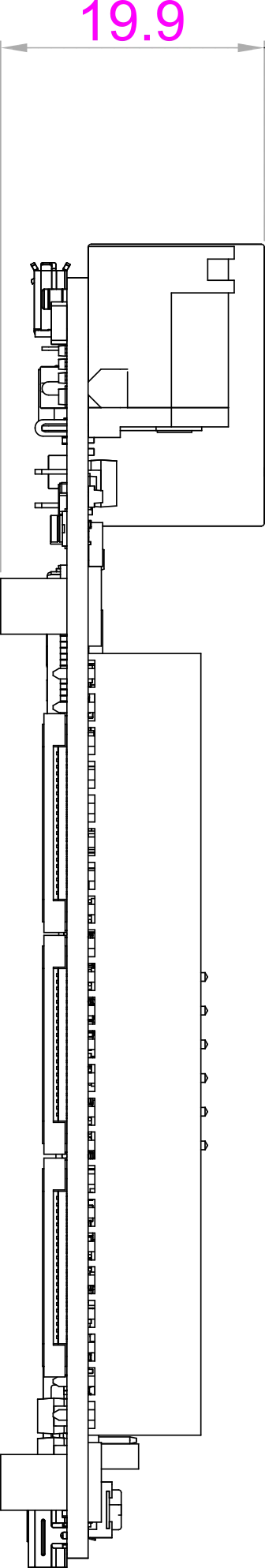

Front	Left	Right

Table 73 Dimensions & weight

Parameter	Values
Size	96.5×60.7×19.9mm
Max heigh	21.1mm
PCB Size	96.5x60.5*1.6mm
PCB Layers	10 layers
PCB Thickness	1.6mm
RoHS compliant	yes
Gross Weight	128.8g
Net weight	49.7g
